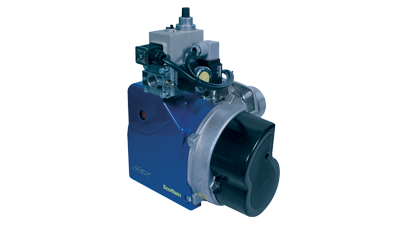

MAX GAS
Gas
Gas Burners from 17 to 500 kW
Main Features
- High efficiency fan ventilation system (HPV) allowing easy matching with boilers having high combustion chamber pressure
- Combustion head easy to assemble and adjust for fine set up
- Single bolt burner fixing with the possibility to firmly secure it to the flange in three different positions for easy maintenance
- Separate gas train (available for different inlet gas pressure) easy to assemble into the burner
- The hinge flange allows accessibility to burner head without losing burner settings
- New control box Thermowatt allowing to improve the interface with service personnel. The digital display (PAB versions) featuring the interactive language with pictograms gives real time information about burner operation and statistics stored during the heating season
Manuals
- One stage Low NOx class 3 (NOx <80 mg/kWh) Output (kW)
- MAX GAS 40 P - 70 P - 105 P - 120 P 17 - 120 kW Download File
- Two stages Low NOx class 3 (NOx <80 mg/kWh) Output (kW)
- MAX GAS 170 P - 250 P 55 - 240 kW Download File
- MAX GAS 170 PAB - 250 PAB 55 - 240 kW Download File
- MAX GAS 350 P - 500 P 100 - 500 kW Download File
- MAX GAS 350 PAB - 500 PAB 100 - 500 kW Download File
- MAX GAS 350 P - 500 P - 700 P 100 - 700 kW Download File
- MAX GAS 350 PAB - 500 PAB - 700 PAB 100 - 700 kW Download File
