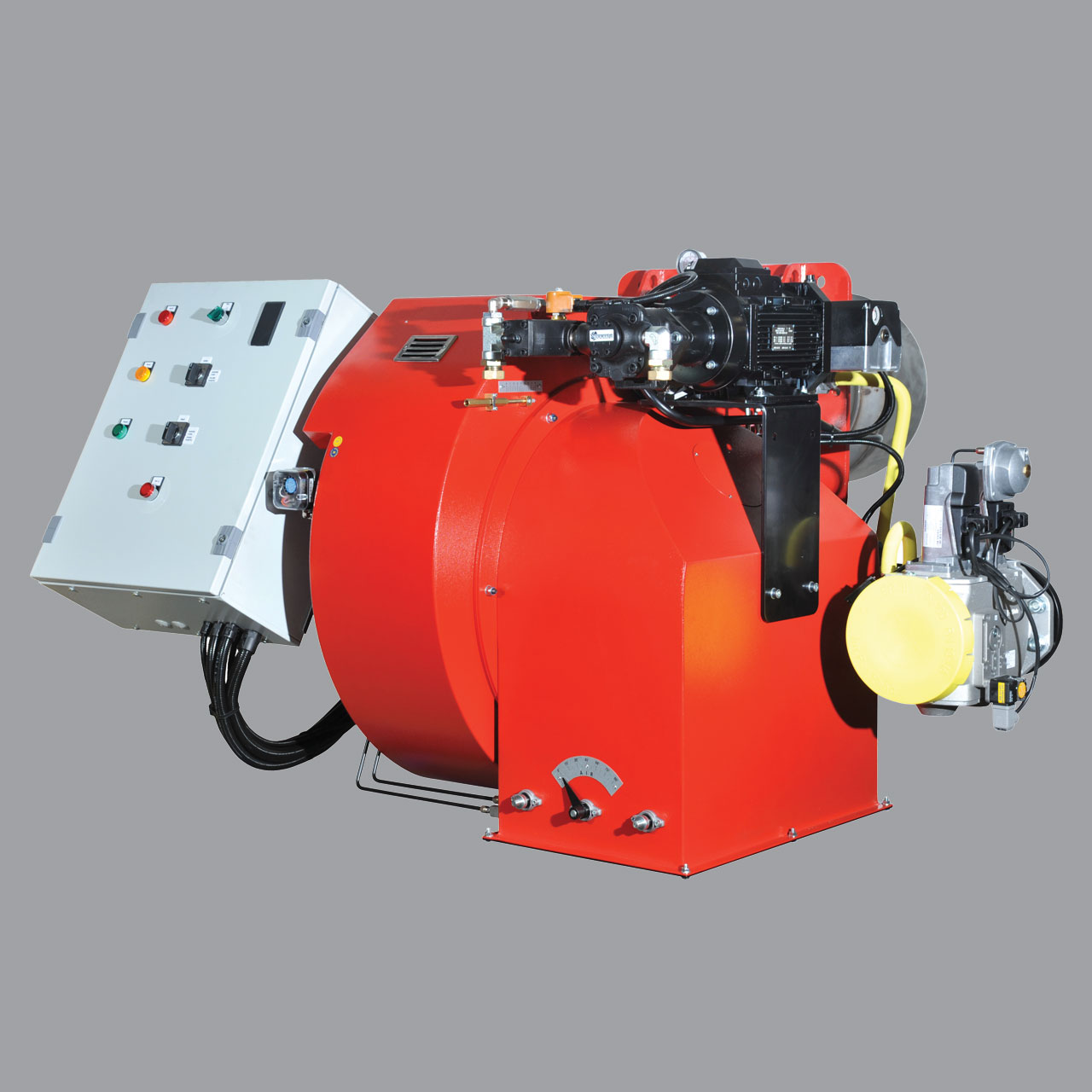

Main Features

  • Aluminium casing up to MULTICALOR 200.1 and steel casing from 300.1 with electrical panel integrated on board
  • Adjustable combustion head for fine-tune regulation and matching with different combustion chamber
  • Two stages version with electric servomotor and integrated system for the regulation of air gas and light oil with two nozzles from MULTICALOR 45 to MULTICALOR 200.1
  • Progressive version with electrical servomotor and double adjustable mechanical cam that allows air gas/light oil fine tuning
  • Progressive modulating nozzle with flow and return. Shut down flow system on the nozzle managed by coil from MULTICALOR 700.1
  • Separate gas train (available for different inlet gas pressure) easy to assemble into the burner. Gas pilot included in the BBCH with separate supply line
  • Configurated and special version on request for selected type of applications and fuel characteristics
  • DUOBLOCK and ELECTRONIC versions are available on request for selected output to match main boilers and industry applications
  • Standard version running on manual fuel selection mode and on request automatic fuel changeover. The automatic change over system can be triggered by gas pressure or by a timer

Manuals

  • Two stages gas / Two stages light oil Output (kW)
  • MULTICALOR 45-140 PAB 17,6 - 35,5 Download File
  • MULTICALOR 170.1 & 200.1 342 - 2,150kW Download File
  • Two stages progressive mechanical gas / Two stages progressive mechanical light oil Output (kW)
  • MULTICALOR 300.1 PR/MD & 400.1 PR/MD 3000 - 3900kW Download File
